Overview

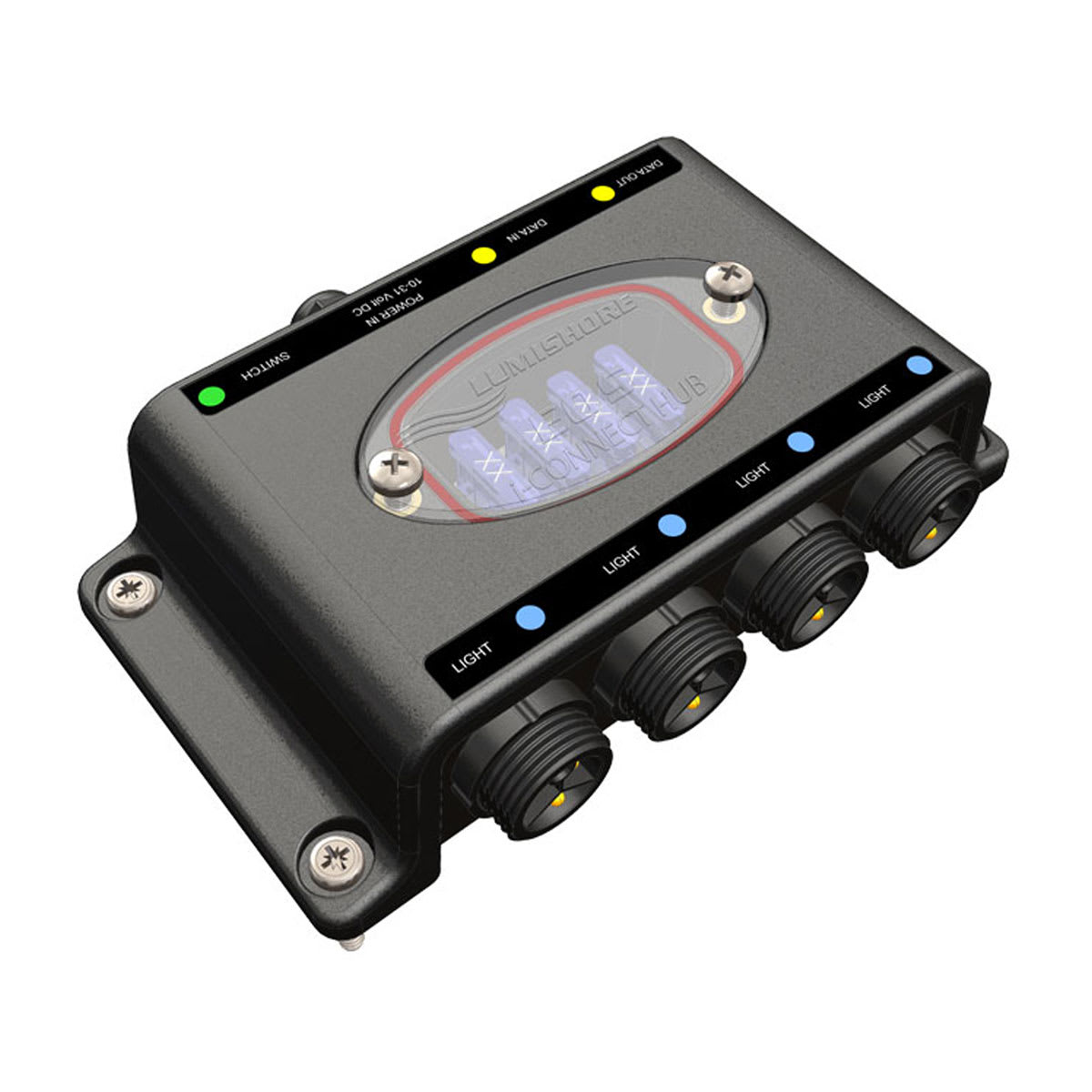

This kit is required to unlock full control of up to 4 full-color SMX154 or TIX404 underwater lights. This compact hub delivers complete lighting functionality through the EOS-LUX Command Center. Up to 4 hubs can be installed on a single boat for expanded control. A 1-meter DMX cable is included.
Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.
Specs
General |
|
| Warranty | 3 years |
|---|---|
| Electrical installation | Plug and play |
| Operating voltage | 12 V/24 V |
| Operating voltage range | 10.5-31 VDC |
| Current consumption 12 V (max) | 0.1 A (device only) |
| Current consumption 24 V (max) | 0.05 A (device only) |
| Average power draw | 1.2 W (device only) |
| Construction | Robust weatherproof ABS (flame retardant and halogen-free) |
| Water and dust rating | IP68 |
Control Options |
|
| EOS-LUX Command Center | |
|---|---|
Mounting Dimensions |
|
| Dimensions (width) | 5.83″ (148 mm) |
|---|---|
| Dimensions (depth) | 3.11″ (79 mm) |
| Dimensions (height) | 1.5″ (38 mm) |
| Mechanical installation | Screw fixings |
Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.
