Overview
DEDICATED LIGHTING CONTROL

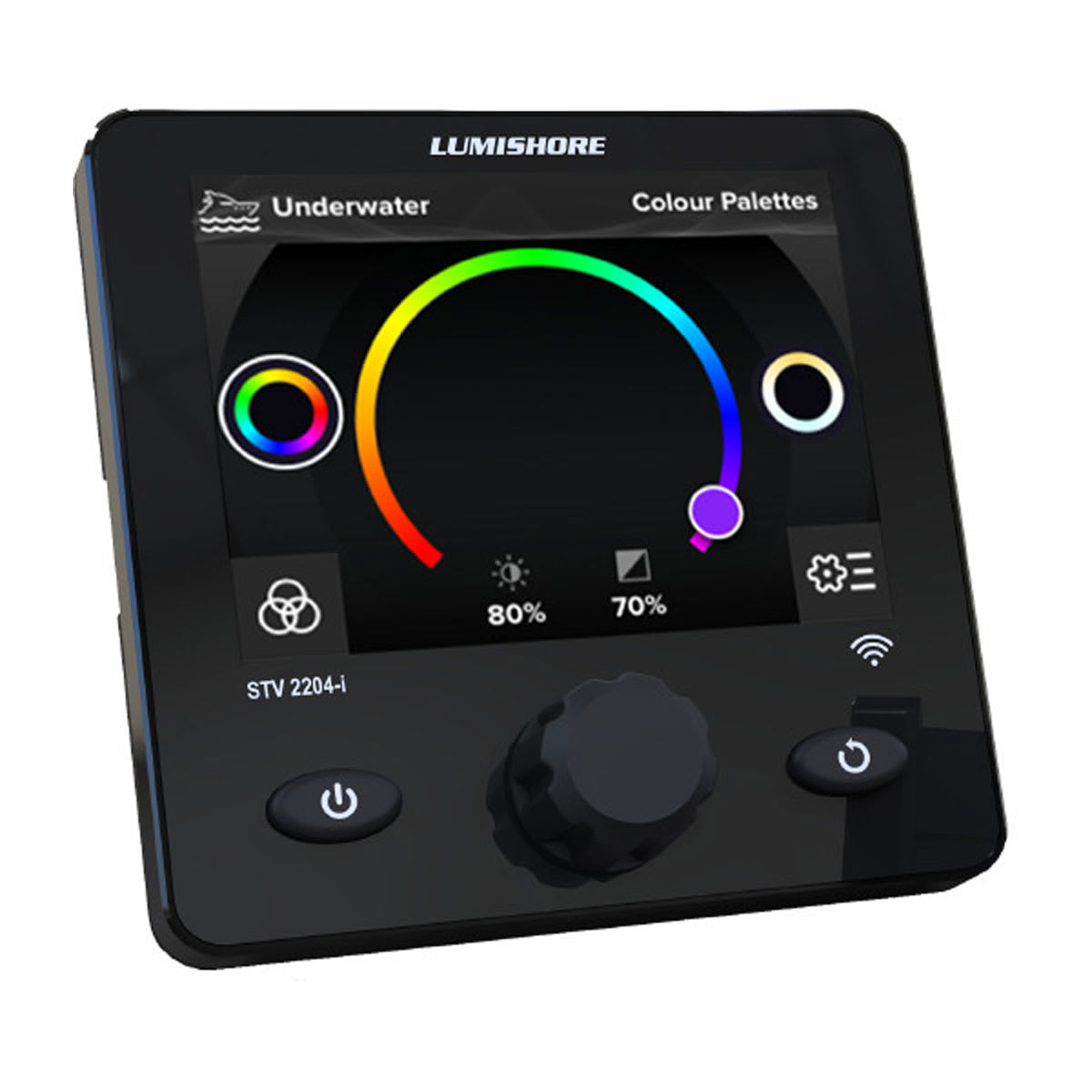

This dedicated display provides fast, intuitive control of your LUX above-water, full-color and dual-color change underwater lighting systems1. The combined rotary dial and touchscreen make it easy to change colors, adjust brightness, select zones and activate modes from anywhere on board.
COLOR TOUCHSCREEN AND ROTARY DIAL
CUSTOMIZE COLORS, BRIGHTNESS, SENSITIVITY AND MORE
IP68-RATED FOR DUST AND WATER PROTECTION
3-YEAR WARRANTY
1The EOS-LUX Command Center is required for LUX above-water lights and full-color change underwater lights. The SUPRA Bridge Module and SUPRA i-Connect Hub are required for dual-color change underwater lights.
Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.
Specs
General |
|
| Warranty | 3 years |
|---|---|
| Electrical installation | Ethernet cable |
| Operating voltage | 12 V/24 V |
| Operating voltage range | 10.5-31 VDC |
| Current consumption 12 V (max) | 0.3 A |
| Current consumption 24 V (max) | 0.15 A |
| Average power draw | 3.6 W |
| Construction | Glass bridge-style front with polymer molded recessed back |
| Water and dust rating | IP68 |
Control Options |
|
| EOS-LUX Command Center | |
|---|---|
Mounting Dimensions |
|
| Mounting depth clearance | 3.71″ (94 mm) |
|---|---|
| Frontal protrusion (profile) | 0.39″ (10mm) |
| Mounting hole | 3.27″ x 3.27″ (83 mm x 83 mm) |
| Dimensions (width) | 3.62″ (92 mm) |
| Dimensions (depth) | 4.64″ (118mm) |
| Dimensions (height) | 3.62″ (92 mm) |
| Mechanical installation |
Panel mount (bracket supplied) |
