WIRELESS AUDIO WITHOUT COMPROMISE
Using state-of-the-art wireless technology, the JLink TRX system delivers pure high-fidelity sound throughout your home — invisibly and effortlessly.
INDOOR RANGE OF UP TO 100’
BIT-PERFECT DIGITAL PCM STEREO WIRELESS TECHNOLOGY
OUTSTANDING FIDELITY IN SUBWOOFER OR FULL-RANGE APPLICATIONS
RCA INPUT/OUTPUT CONNECTORS
RECEIVER INCLUDES JLINK DIRECT CONNECTION PORT
ASSIGN SIGNAL TO ONE OF THREE RF CHANNELS
WHAT YOU’LL LOVE
CRISP WIRELESS AUDIO
By broadcasting at an ultrahigh frequency of 2.4 GHz, JLink TRX lets you connect any two line-level audio devices together, without the use of RCA signal cables to connect in between. Now you can wirelessly send crystal-clear stereo sound from a source unit to a receiver, preamp or powered loudspeakers.
OPTIONAL TRANSMITTER
If you wish to expand your JLink setup, up to four JLink RX receivers can be connected to a single JLink transmitter, delivering audio signals to multiple points in your home. Up to three JLink transmitters can operate in a home, each on its own wireless channel and each connected to up to four JLink RX receivers.
Specs
General |
|
| Channels | 2 |
| Physical dimensions (Height) | Transmitter/Receiver 1.12″ (28 mm) |
| Physical dimensions (Width) | Transmitter/Receiver 3.5″ (89 mm) |
| Physical dimensions (Depth) | Transmitter/Receiver 3.5″ (89 mm) |
| Signal-to-Noise ratio | 80 dB @ 1 kHz, 500 mV |
| THD+N | 0.02% @ 1 kHz, 500 mV |
| Crosstalk | >75 dB @ 1 kHz, 500 mV |
| Frequency response (+0, -1dB) | 16 Hz-22 kHz |
| Wireless range | 100 ft/30 m (typical) |
| Wireless channels | 3 available, selectable via switch |
| Latency | 14 mS |
| Operating temperature range | 32º to 104° F/0º to 40° C |
| AC power adapter | 1 A, 5 V DC |
| Warranty | 3 years |
Transmitter Specifications |
|
| Input impedance | 25 kΩ |
| Outputs | Bit-perfect PCM stereo digital via 2.4 GHz wireless |
| Receivers supported | Up to 4 |
| Bit depth/Sample rate | 16 Bit/48 kHz |
| Power requirements | 200 mA, 5 V (via AC adapter) |

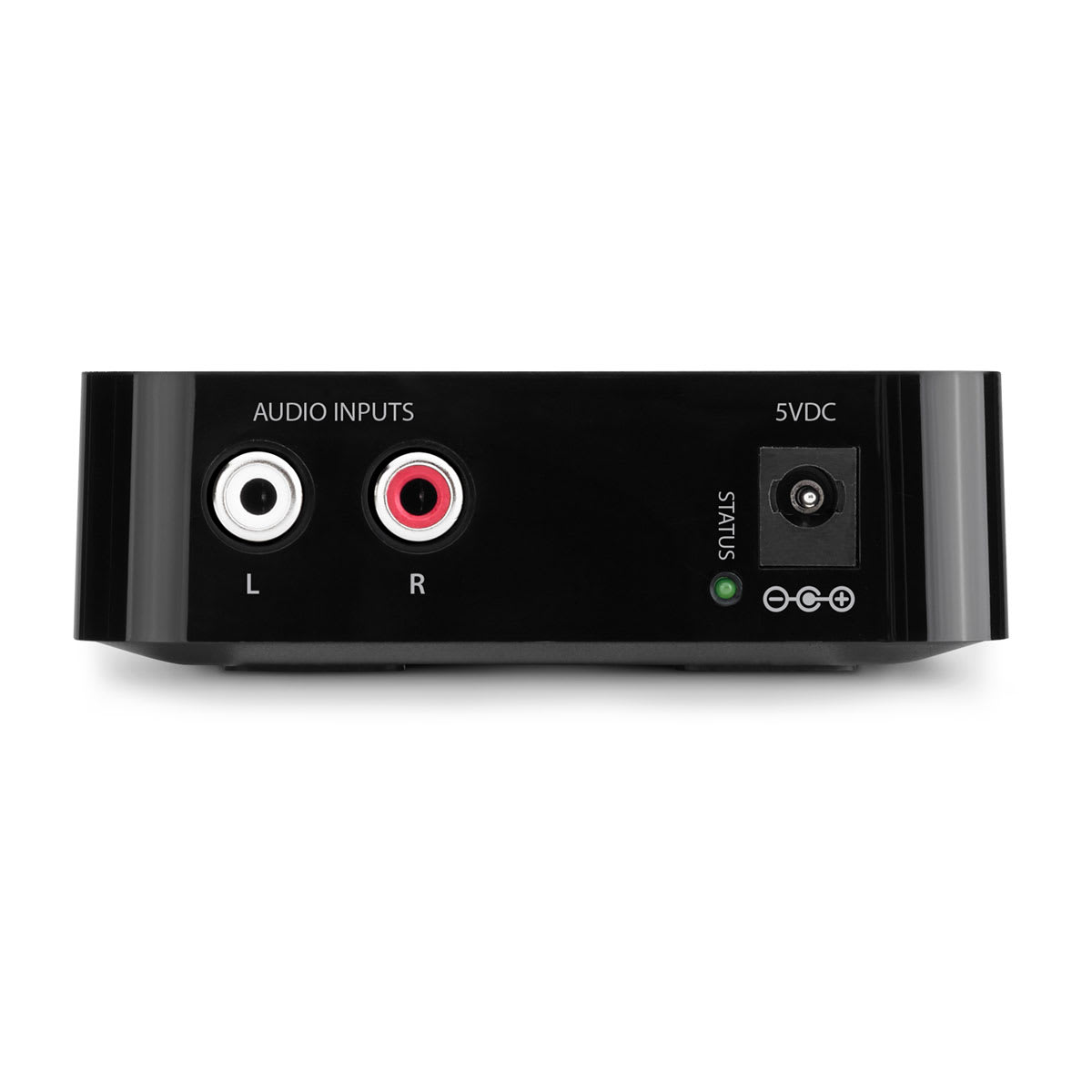

| Inputs | Analog, left and right RCA-type |
Receiver Specifications |
|
| Inputs | Bit-perfect PCM stereo digital via 2.4 GHz wireless |

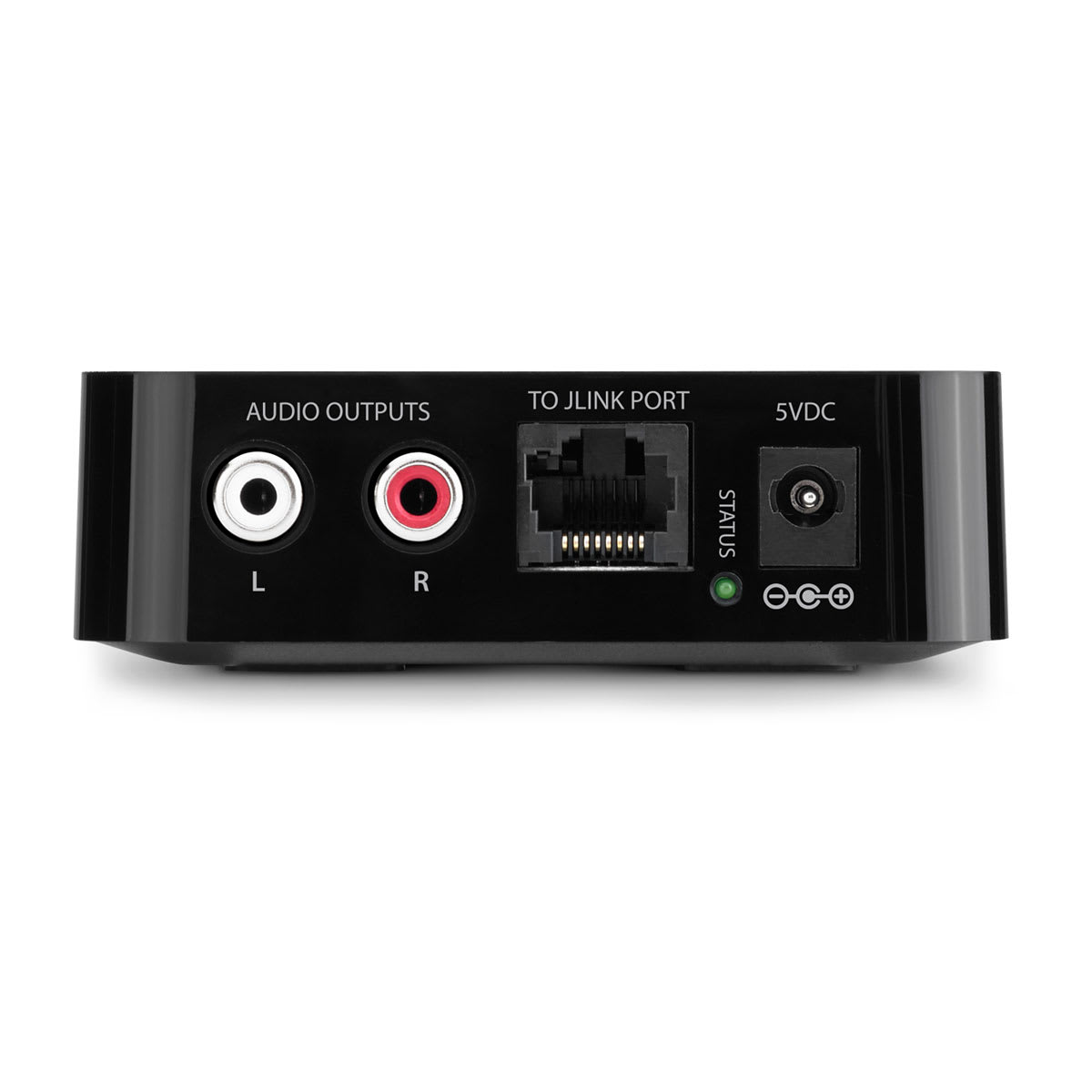

| Outputs | Analog, left and right RCA-type analog via JLINK port to compatible product |
| Output Impedance | 250 Ω |
| Full Scale Output Voltage | 1.2 V |
| Power Requirements | 100 mA, 5 V (via AC adaptor or JLINK port) |
Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.
