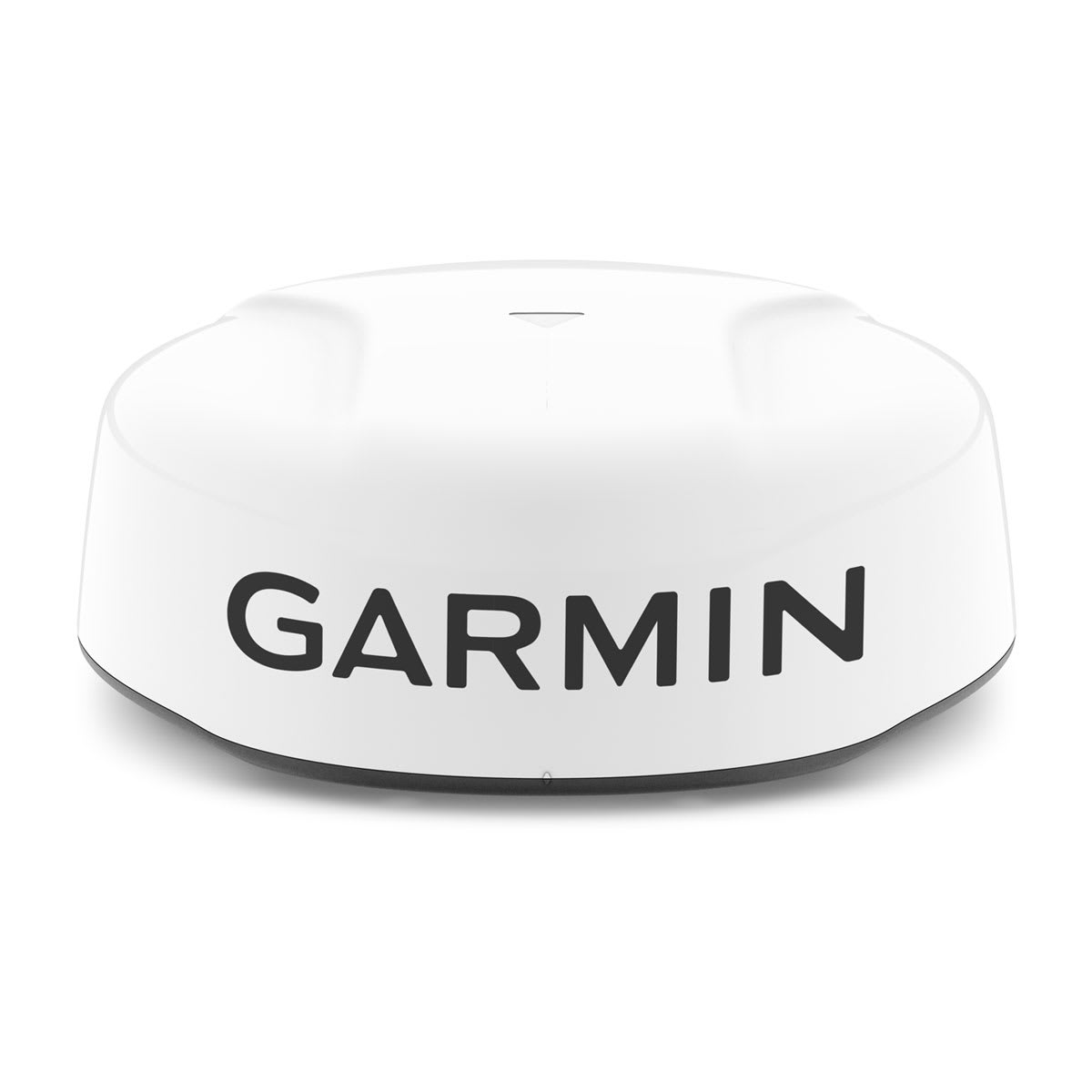

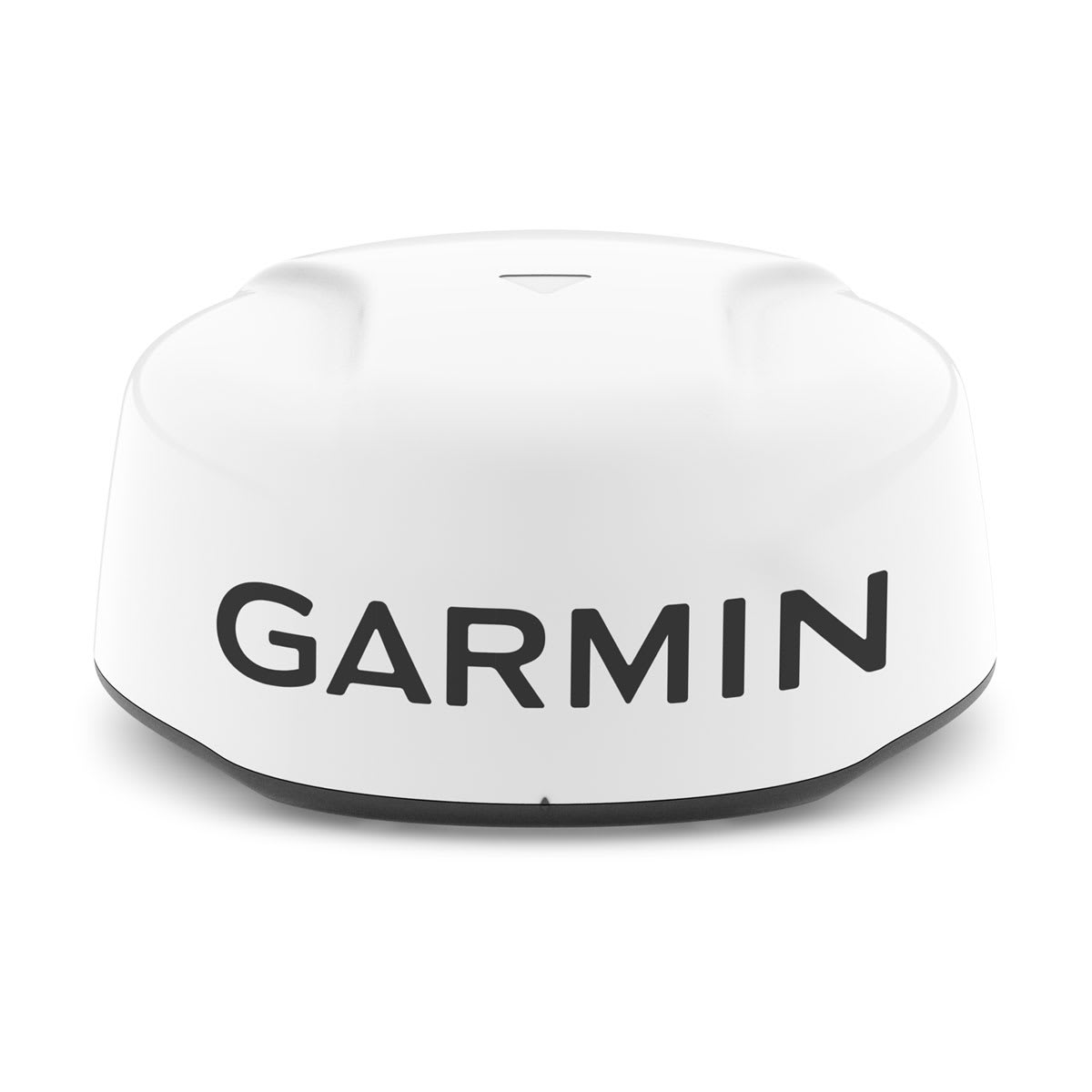

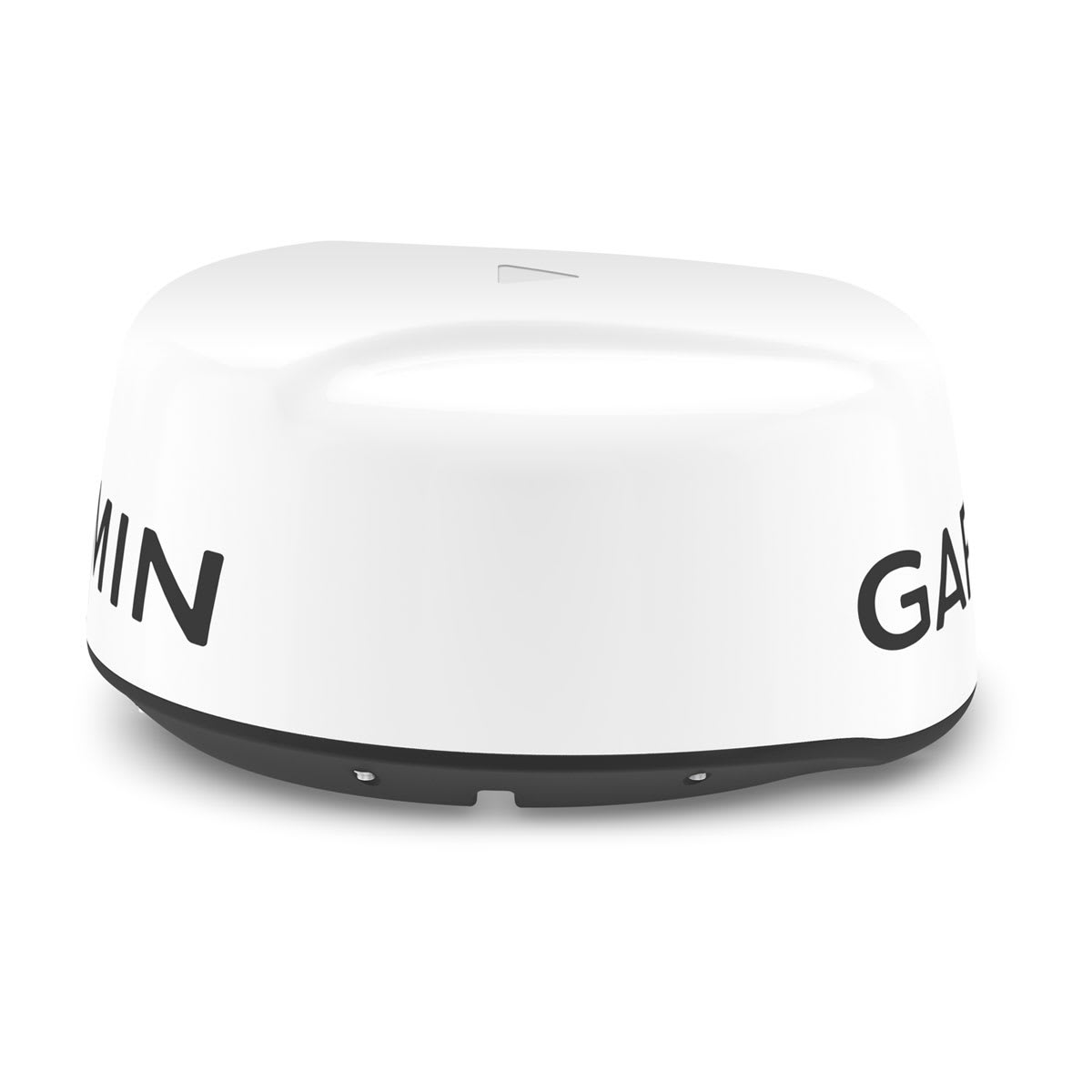

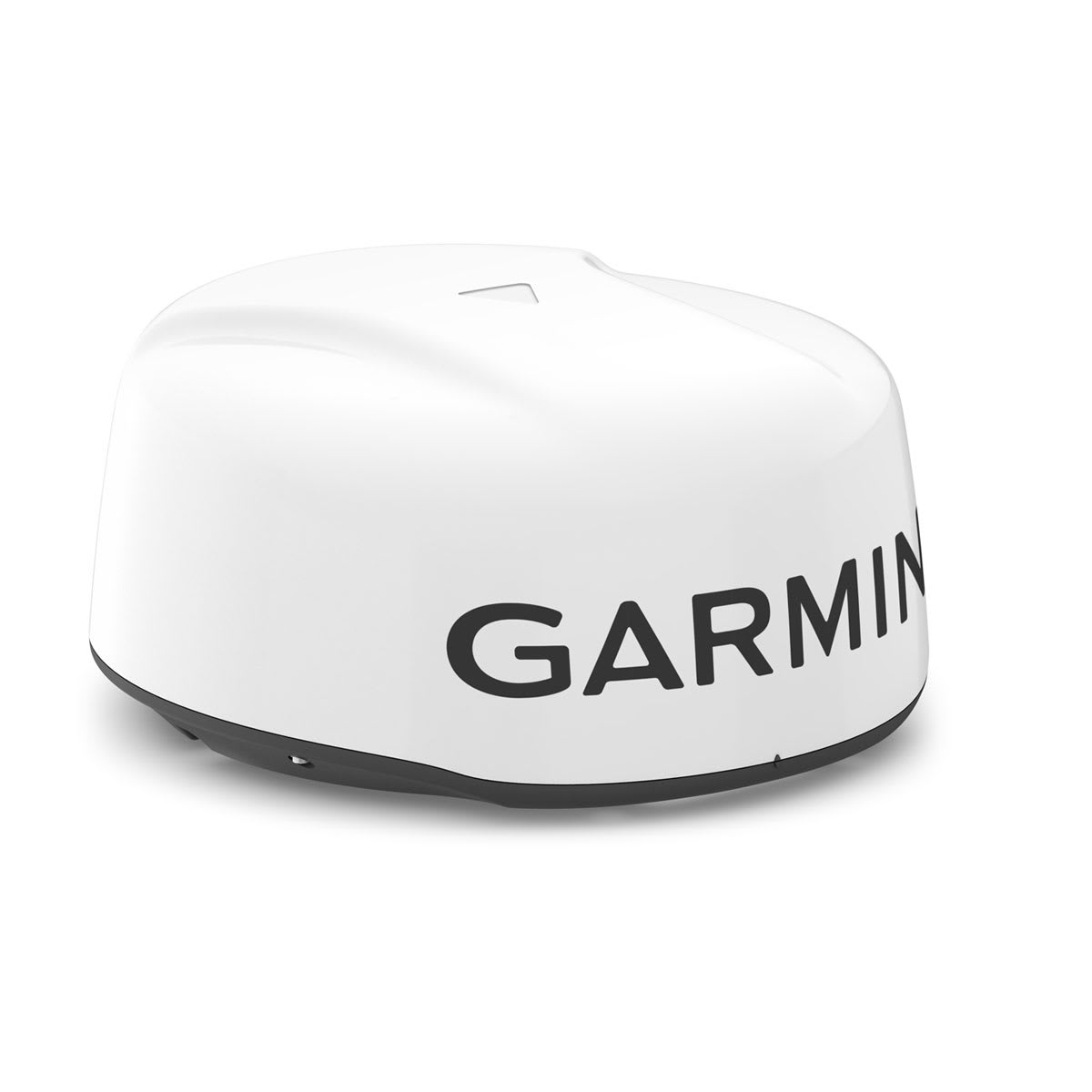

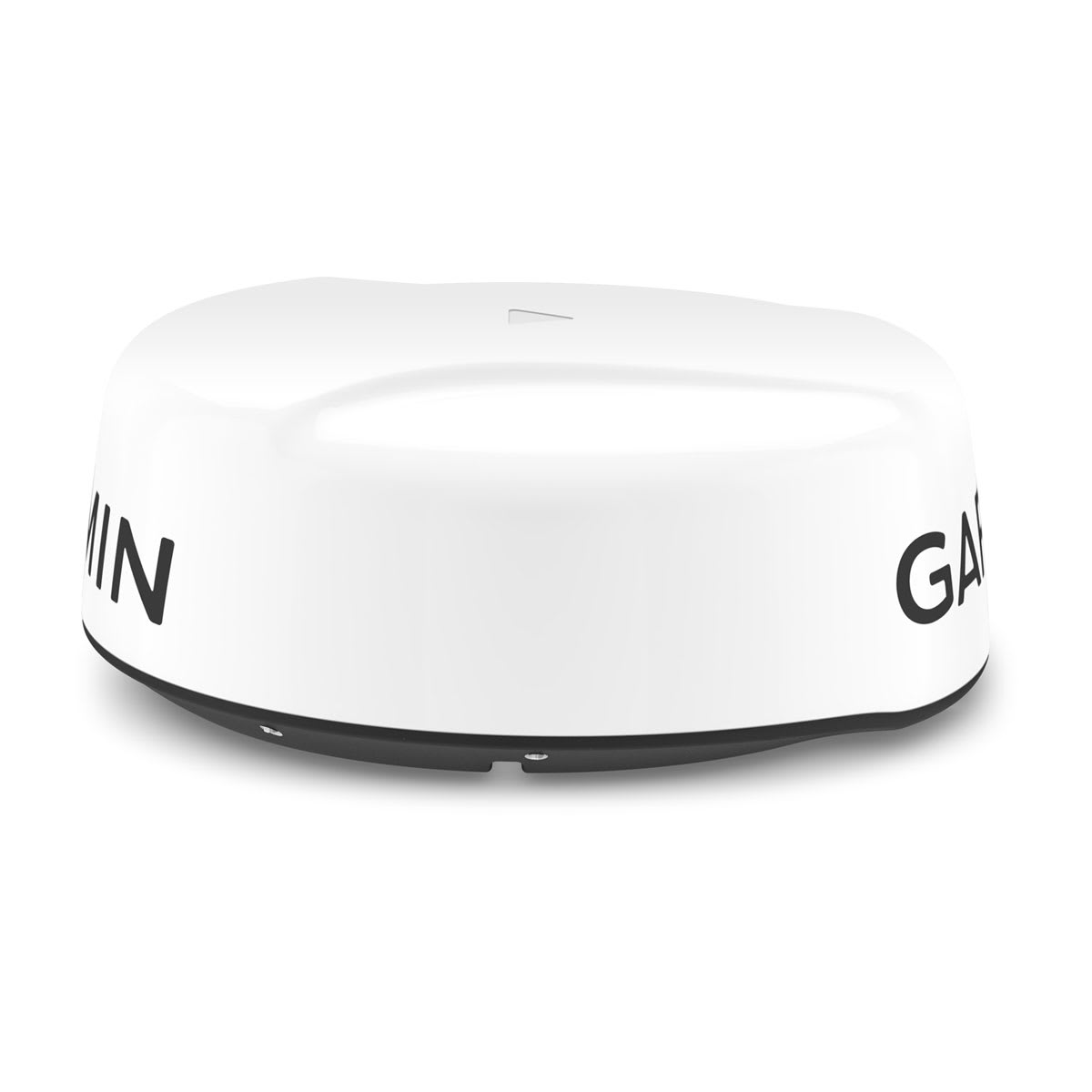

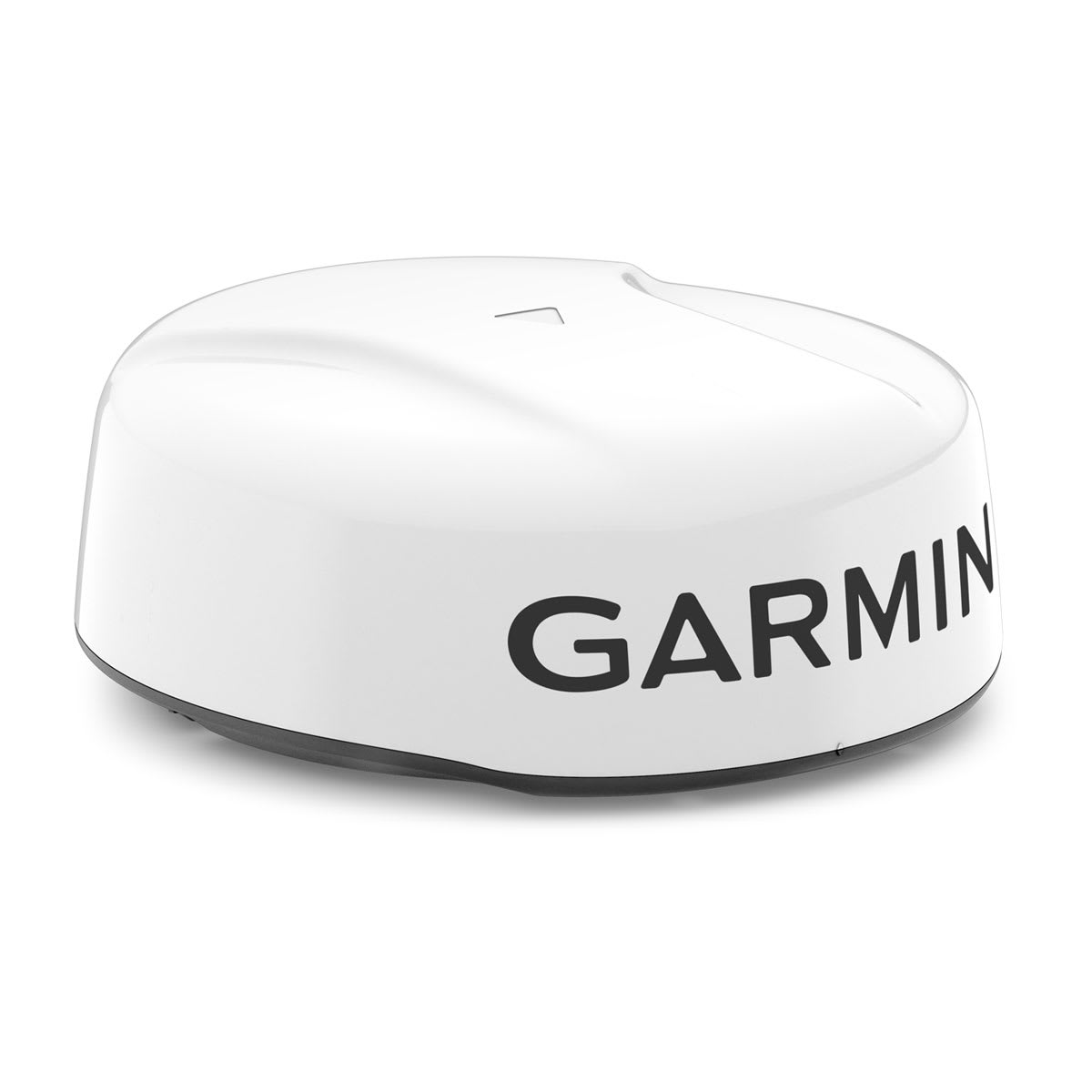

GET ROBUST MAGNETRON SCANNING IN A COMPACT GARMIN DOME RADAR
Loaded with advanced features typically found on open arrays, these powerful 18” and 24” dome radars offer superior traffic, obstacle and weather detection for peace of mind on the water.
4kW POWER OUTPUT, 48-NAUTICAL MILE MAX RANGE
SCAN AVERAGING TECHNOLOGY
IMPROVED TARGET-SIZE PROCESSING
SPLIT-SCREEN DUAL-RANGE DISPLAY
BIRD DETECTION
QUIET DOME DRIVE MOTOR
TOP FEATURES
NEW SCAN AVERAGING TECHNOLOGY
A first for Garmin magnetron radar, scan averaging helps filter out sea clutter and interference to enhance the detection and display of consistent targets.
ANGULAR TARGET-SIZE ADJUSTMENT
Pulse expansion and angular target-size processing techniques optimize on-screen object shapes for better interpretation at all range scales.
FASTER SCANNING ANTENNA
Rotation speeds up to 60 rpm improve the redraw rate for faster target updates.
TRUE ECHO TRAILS
A historical “trail” of boats on the water is displayed on the screen,removing relative motion influence to help you quickly identify moving targets and potential collision threats.
DUAL RANGE WITH OVERLAY
A single radar antenna is capable of providing split-screen, side-by-side images on your compatible chartplotter, with independent range setting and controls for both close and long range. Overlay either or both ranges on a chart.
DYNAMIC AUTO GAIN
Gain automatically adjusts levels to optimum settings for harbors, near shore and offshore in open waters.
SEE MORE OF WHAT’S OUT THERE
RADAR OVERLAY
See overlaid images on your chartplotter’s map screen (with appropriate sensors, sold separately).
HIGH-RESOLUTION RADAR
Pick out targets at a distance, thanks to narrow horizontal beamwidth and high antenna gain.
DUAL-RADAR SUPPORT
This provides redundancy and allows each display unit to pull data from different sources.
DYNAMIC SEA FILTER
Radar gain automatically adjusts sea clutter for calm, medium and rough sea conditions.
AUTO BIRD GAIN
Locate flocks of birds at the water’s surface where baitfish are also likely to be found.
MARPA TARGET TRACKING
Track up to 30 targets to help avoid collisions (with appropriate sensors, sold separately).
GUARD ZONE
Set the safety zone, and receive an alarm when an object enters the zone.
RANGE AND BEARING CUES
Variable range markers and electronic bearing lines allow rapid measurements of distance and bearing to vessels and land.
Specs
General |
|
| Antenna Length | 18: 17″ (43 cm) 24: 23″ (58 cm) |
|---|---|
| Rotation speed (RPM) | Up to 60 rpm, depending on settings |
| Dimension | 18: 20″ x 9.8″ (508 mm x 248 mm) 24: 25.4″ x 9.8″ (64.5 cm x 24.9 cm) |
| Weight |
18: 7.0 kg |
| Water rating | IPX7 |
| Beam width | 18: 5.2° horizontal, 25° vertical 24: 3.7° horizontal, 25° vertical |
| Maximum range | 48 nm |
| Minimum range | 20 meters |
| Radar type | Radome |
Electrical Features |
|
| Power Input | 11-32 V DC |
|---|---|
| Power Consumption (standby) | 15 W |
| Typical power consumption, transmitting (normal mode) | 40 W |
| Transmit power | 4 KW |
Radar Features |
|
| Dual range | |
|---|---|
| Overlay | |
| Dual radar support | |
| Auto Bird Gain | |
| Auto Gain | Dynamic |
| MARPA target tracking | yes (requires heading sensor, sold separately) |
| Echo Trails | True |
| Target size | |
| Scan averaging | |
Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.
