THE FLYING LIFE, SIMPLIFIED
Streamline your flight prep and enjoy your aircraft more with the GDL 60 datalink and PlaneSync™ technology. It’s the “connected aircraft” solution that automatically updates your avionics databases1, logs flight/engine data and lets you remotely check fuel and systems status via your Garmin Pilot™ smart-device app2.

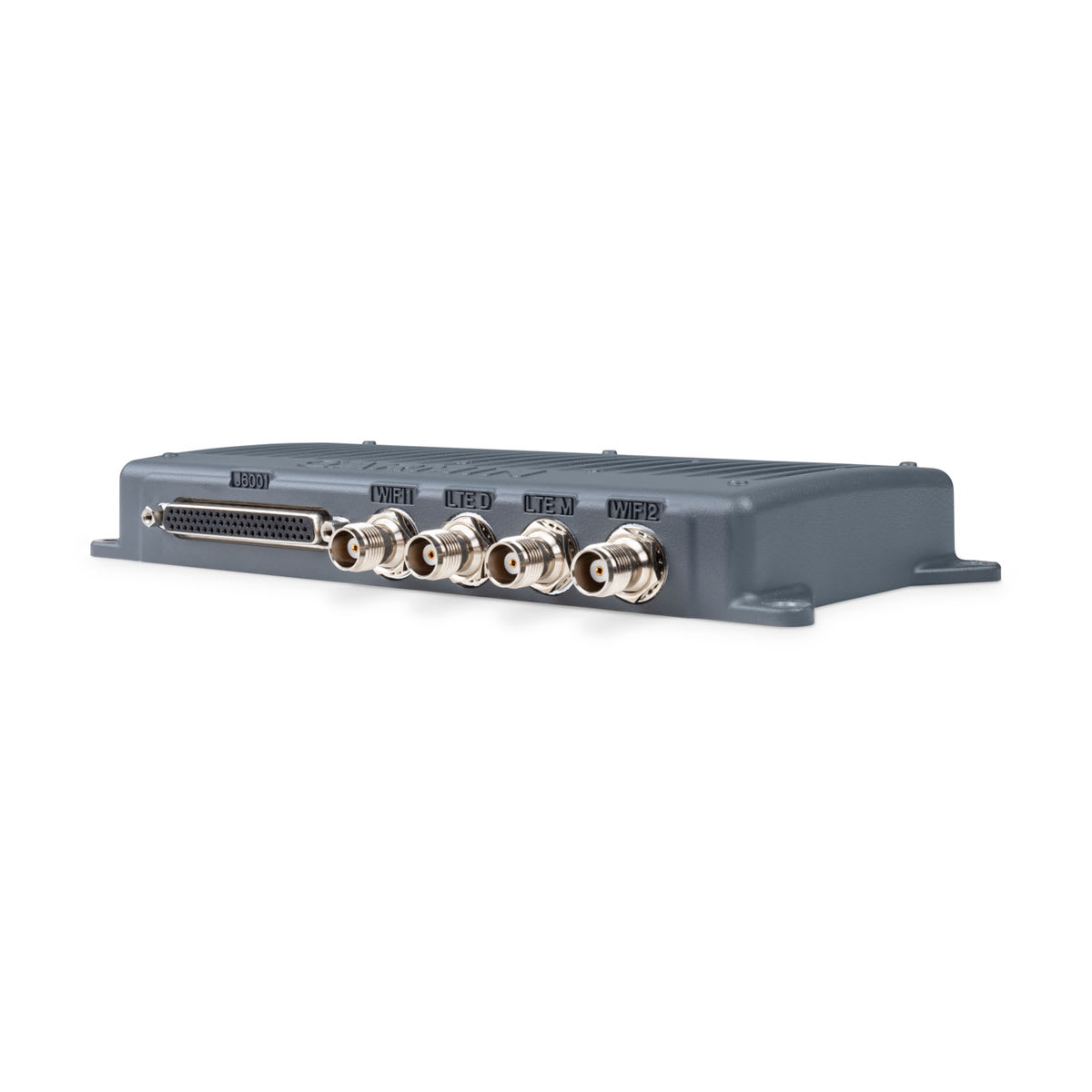

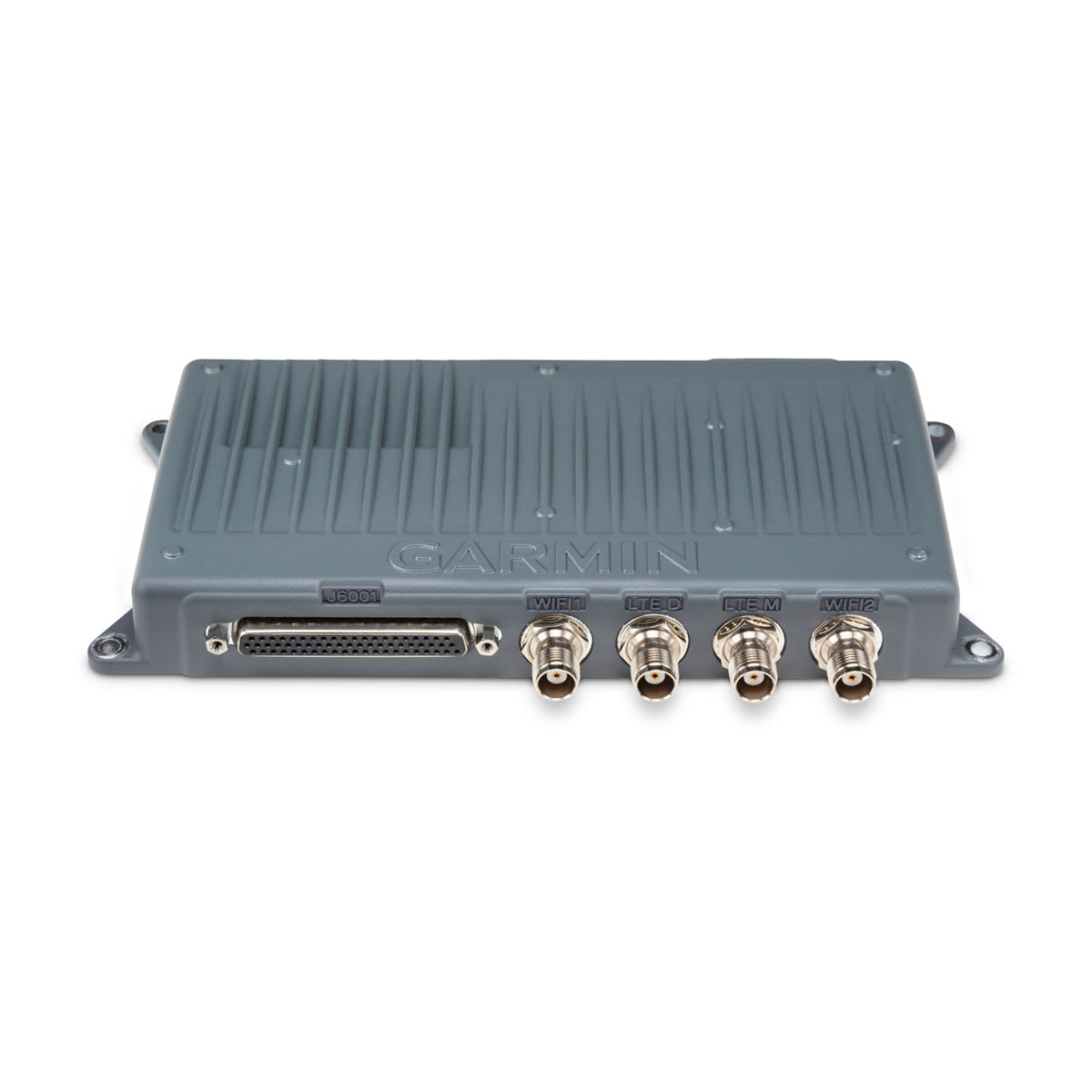

GDL 60 is the datalink that enables our PlaneSync technology to remotely connect with your avionics.
Automatic downloads via 4G LTE cellular or Wi-Fi® connectivity keep your avionics updated with the latest databases1.
Got fuel for your trip? Check the Garmin Pilot app on your smart device for a real-time aircraft status2 update5.
Get a head start by preloading your flight plan into your mobile device, then upload the data to your compatible navigator at the airport.
In flight, you can use Connext® satellite services to interface portable devices and apps with your avionics.
At journey’s end, your flight logs, EIS data and other info are securely uploaded1 into cloud storage and can be optionally sent to integrated services for additional analysis.
Make the connection to maintain flight readiness.
AUTOMATIC DATABASE UPDATES
Forget time-consuming manual updates via data card. Your GDL 60 offers database downloads directly to the aircraft1. You don’t need to be present for the process. Most databases will auto-synchronize across your avionics at power up.
FLIGHT/ENGINE DATA LOGGING AND ANALYSIS
With compatible avionics, your aircraft’s GDL 60 datalink can transmit flight and engine log data automatically1 to secure cloud storage or analysis services after landing. Connected services such as FlySto and Savvy Aviation can convert your flight data to actionable insights and easy-to-read dashboards so you can gain a deeper understanding of your flight and engine performance.
REMOTE AIRCRAFT STATUS
With GDL 60 and the Garmin Pilot app, it’s easy to keep tabs on your aircraft from virtually anywhere2. When appropriately equipped, an aircraft dashboard page lets you check active/standby database status, as well as Hobbs, tachometer and flight times, fuel quantity, battery voltage, OAT, oil temperature and aircraft GPS location4.
MOBILE DEVICE CONNECTIVITY
By adding the GDL 60 datalink to your system, you can use Connext to stream weather, traffic, AHRS, flight plans and other data from your avionics to flight apps such as Garmin Pilot, ForeFlight and FltPlan Go.
ENTERTAINMENT INTERFACE
When installed with a GDL 69A SXM satellite receiver6, GDL 60 streaming capabilities can support remote tuning of SiriusXM® audio entertainment channels via the Garmin Pilot app on compatible mobile devices.
GSR 56 INTERFACE
GDL 60 can also act as an interface to a GSR 56 or GSR 56C satellite transceiver with Connext satellite services5. With a compatible app, you can utilize in-flight text messaging or initiate voice calls to help you stay connected from virtually anywhere.
Get more from your aircraft flight logs
Learn how to share your aircraft flight logs on the flyGarmin.com website.
Gain more insights from your flight logs with analysis services.
Specs
GDL 60 Datalink |
|
| Physical characteristics | |
|
Width |
8.72″ |
| Height | 1.12″ |
| Depth | 4.00″ |
| Weight | 1.5 lbs |
| General Specifications | |
| Input voltage | 14/28Vdc |
| Operating temperature range | -40C to +70C |
| Maximum altitude | 55,000 ft |
| Memory | 64 GB eMMC |
| Compliance | |
| Environmental compliance | RTCA DO-160F |
| Software compliance | RTCA DO-178B Level D (GDL 60 unit), Level E (cellular firmware) |
| TSO compliance | TSO-C109 |
| Cellular Specifications | |
| 4G LTE (CAT 4) with 3G Fallback | |
| Global Operation | Bands: LTE B1,2,3,4,5,7,8,12,18,19,20,25,26,28,38,39,40,41 |
| Transmit power | +25 dBm max |
| 3FF SIM Card (micro SIM) | |
| Wi-Fi Specifications | |
| Physical radios | 2 (one internal access point, one external client) |
| Class | 802.11 b/g/n |
| Frequency band | 2.4 GHz |
| Transmit power | +17 dBm / 50 mW max |
| BLUETOOTH Specifications | |
| BLUETOOTH standard | 4.2 |
| Frequency band | 2.4 GHz |
| Power class | 2 +4 dBm / 2.5 mW max |

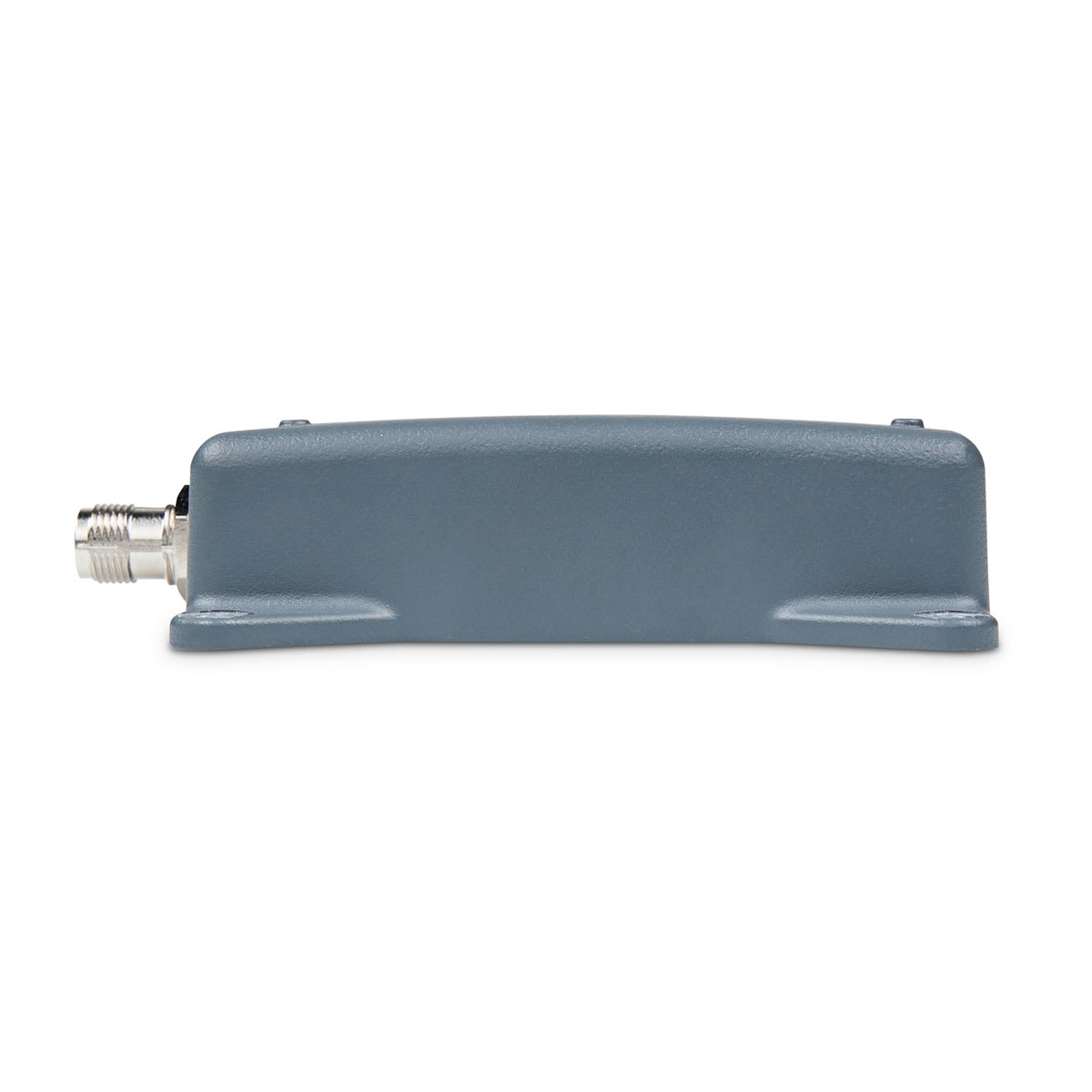

GA 60 LTE Antenna |
|
| Physical characteristics | |
|
Width |
6.39″ |
| Height | 1.08″ |
| Depth | 2.95″ |
| Weight | 0.5 lb |
| General Specifications | |
| Nominal impedance | 50 Ohms |
| VSWR | < 3:1 |
| Operating temperature range | -40C to +70C |
| Maximum altitude | 55,000 ft |
| Intended for installation internal to an aircraft | |
| Cellular Antenna Specifications | |
| Supported radio | Cellular 4G LTE/3G |
| Type | Two element MIMO |
| Bandwidth | 700 MHz to 2700 MHz |
GA 61A LTE/Wi-Fi Combo Antenna |
|
| Physical characteristics | |
|
Width |
7.34″ |
| Height | 3.20″ |
| Depth | 2.34″ |
| Weight | 0.8 lbs |
| General Specifications | |
| Nominal impendence | 50 Ohms |
| VSWR | < 3:1 |
| Operating temperature range | -55C to +70C |
| Maximum altitude | 55,000 ft |
| Intended for installation external to an aircraft | |
| Cellular Antenna Specifications | |
| Supported radio | Cellular 4G LTE/3G |
| Type | Two element MIMO |
| Bandwidth | 700 MHz to 2700 MHz |
| Wi-Fi Antenna Specifications | |
| Supported radio | 2.4 GHz Wi-Fi |
| Type | Single element monopole, omni-directional |
| Bandwidth | 2400 to 2500 MHz |
Wi-Fi Antenna |
|
| Physical characteristics | |
|
Width |
0.31″ |
| Height | 1.08″ |
| Depth | 0.69″ |
| Weight | 0.075 lbs |
| General Specifications | |
| Nominal impedance | 50 Ohms |
| VSWR | < 3:1 |
| Operating temperature range | -40C to +70C |
| Maximum altitude | 55,000 ft |
| Intended for installation internal to an aircraft | |
| Wi-Fi Antenna Specifications | |
| Supported radio | 2.4 GHz Wi-Fi |
| Type | Two element monopole, omni-directional |
| Bandwidth | 2400 to 2500 MHz |
