GAIN PRECISE CONTROL OF YOUR AUTOPILOT
Get easy-to-use control of your Reactor™ 40 autopilot, and put simple, intuitive knob and button activation, heading changes and more at your fingertips.
CONTROL IN ALL SEA CONDITIONS
ROTARY KNOB
The LED-encircled knob provides precise heading control and colored reference of autopilot status.
AUTOPILOT BUTTONS
Dedicated engage and standby buttons make starting and stopping your autopilot easy.
MULTIPURPOSE BUTTONS
Add more autopilot control functions based on your vessel type and setup preferences.
SIMPLE INSTALLATION

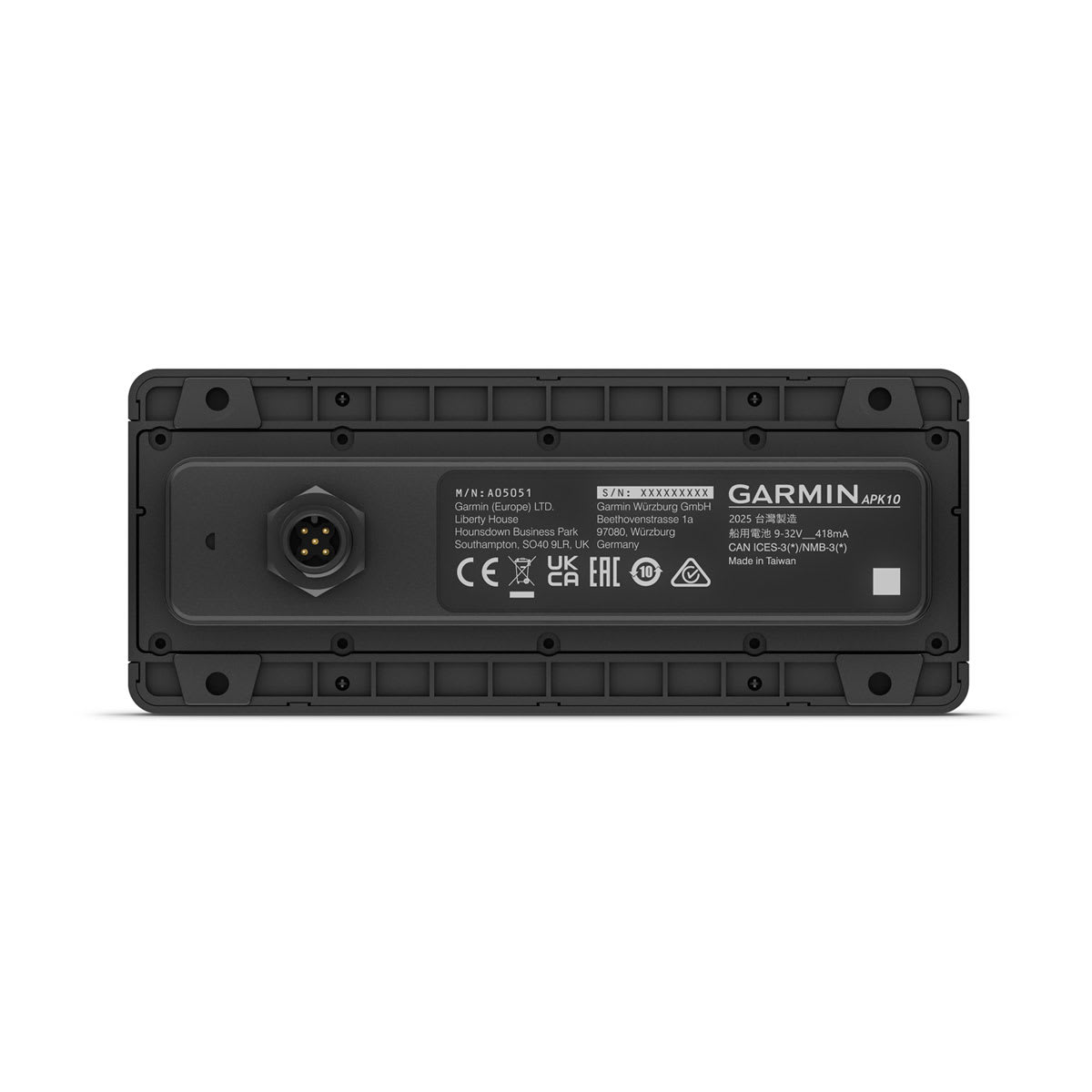

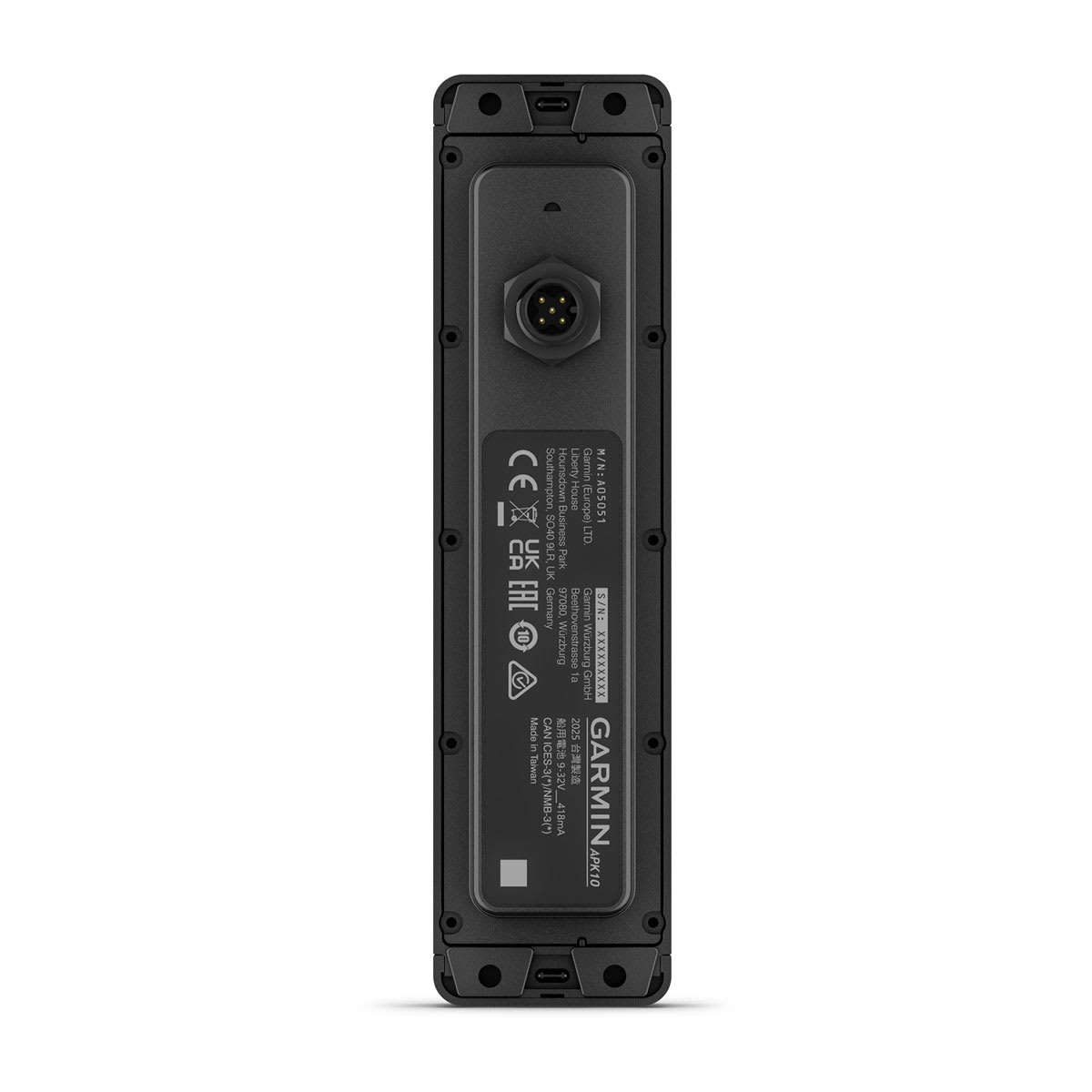

Connect to your NMEA® 2000 network with a single port and cable for integration and power.
COMPACT DESIGN

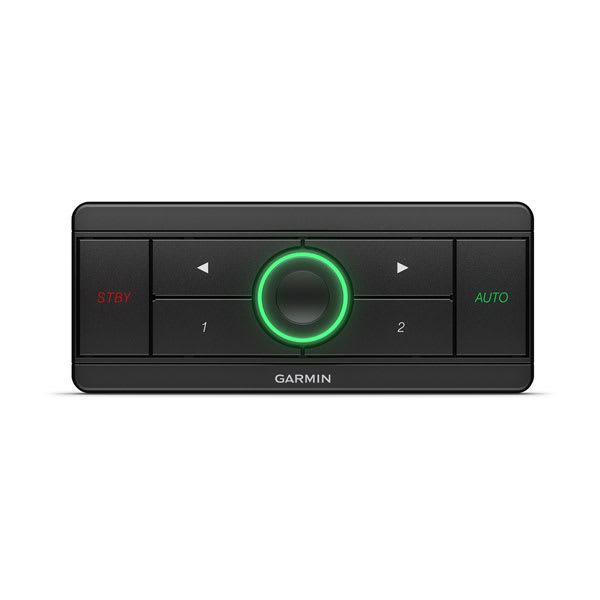

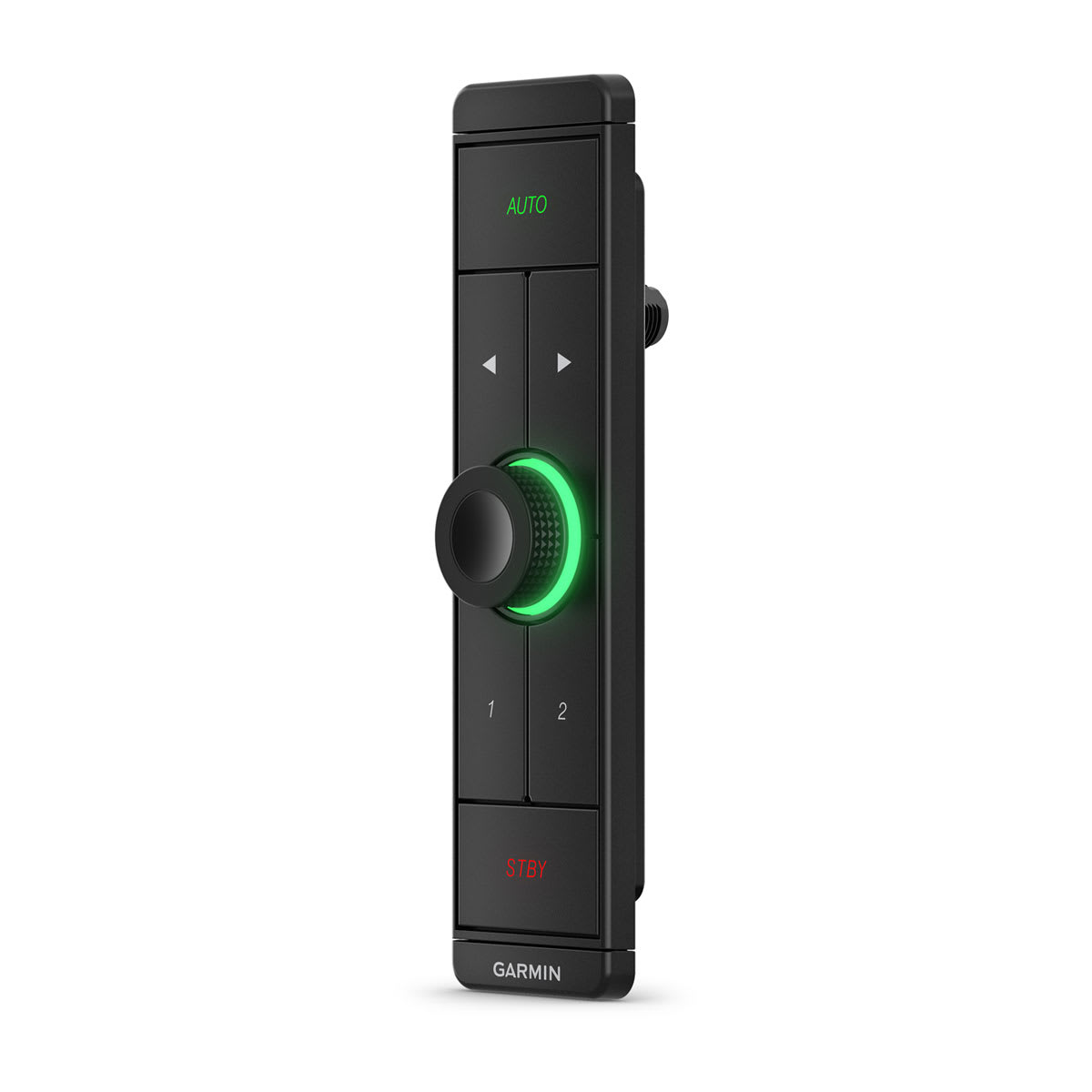

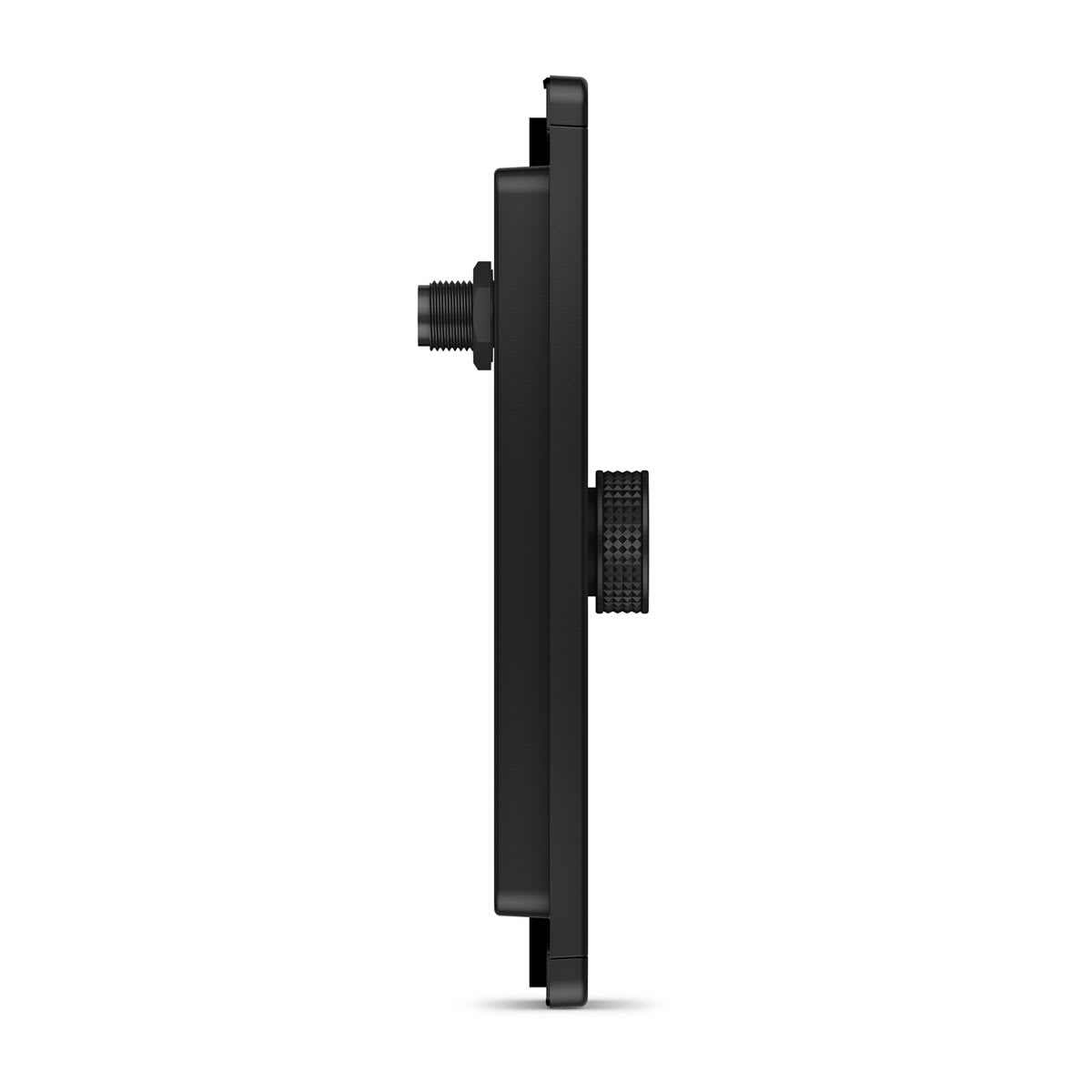

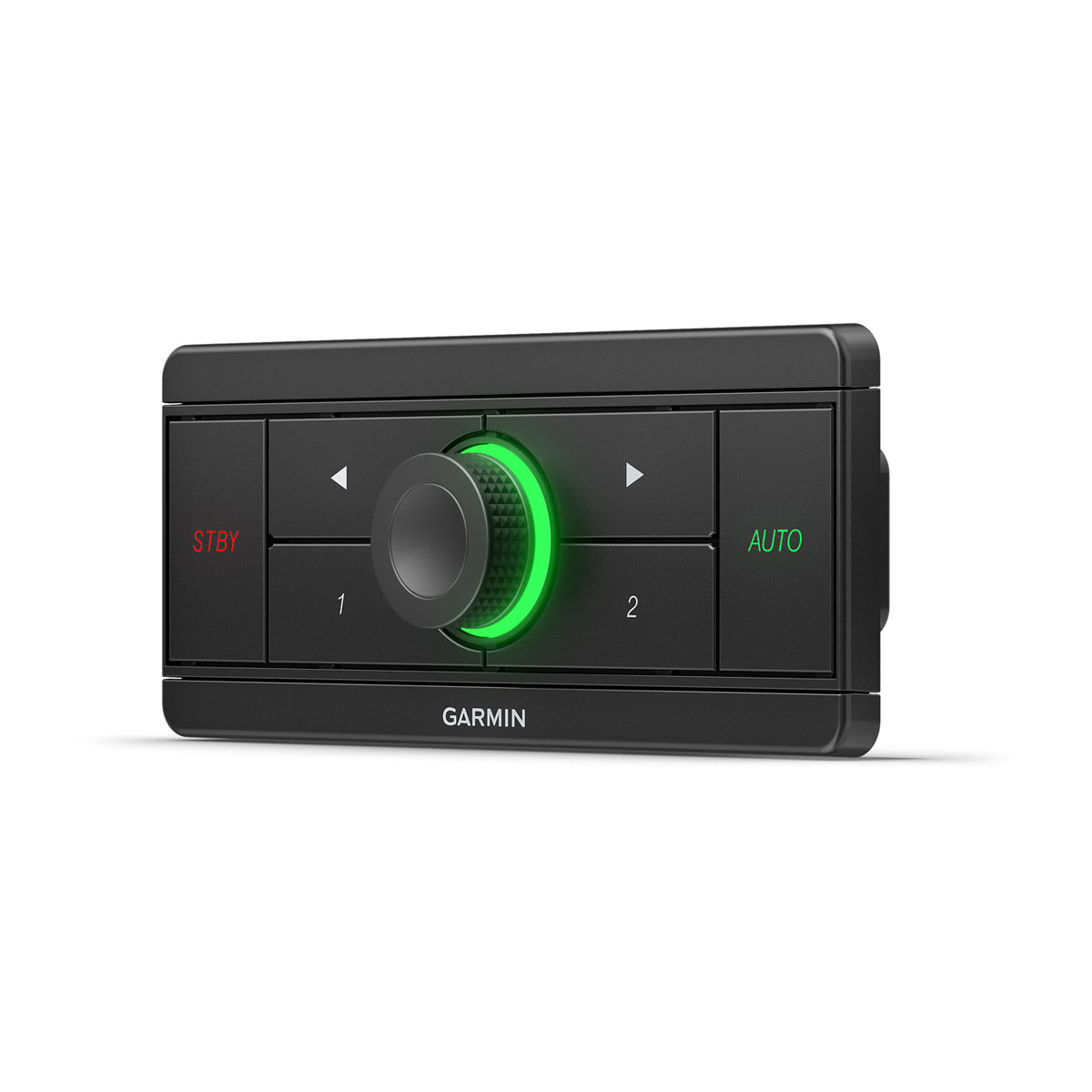

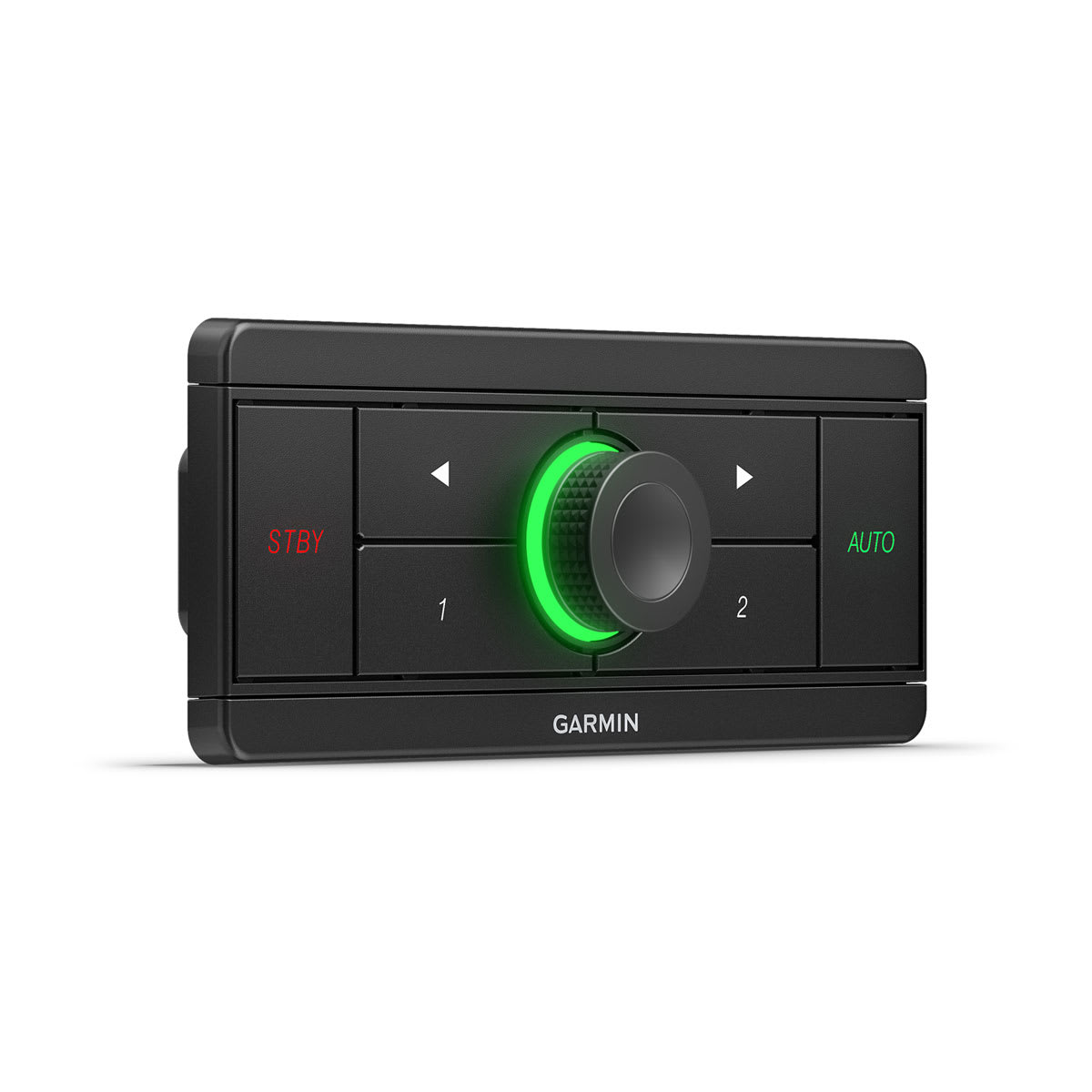

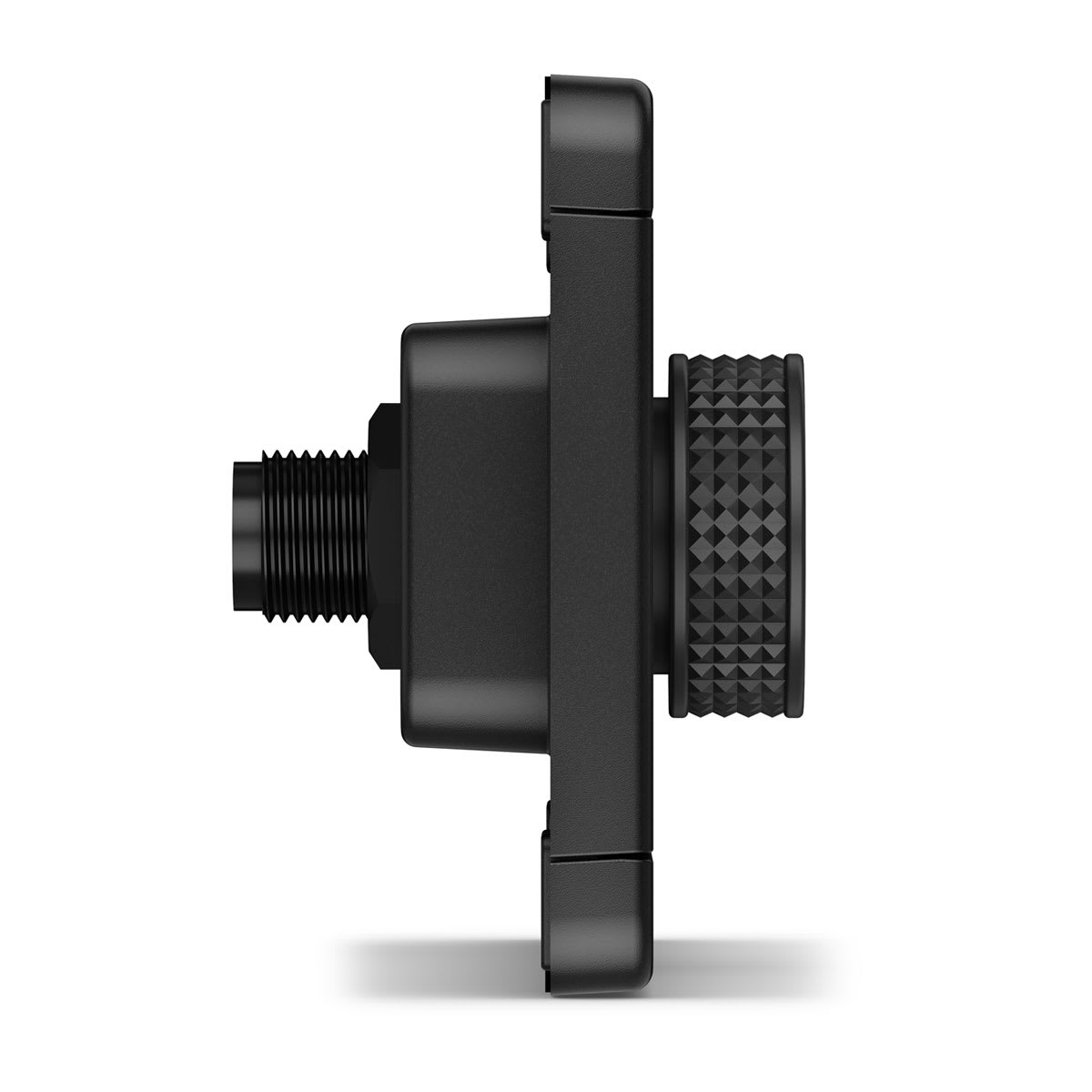

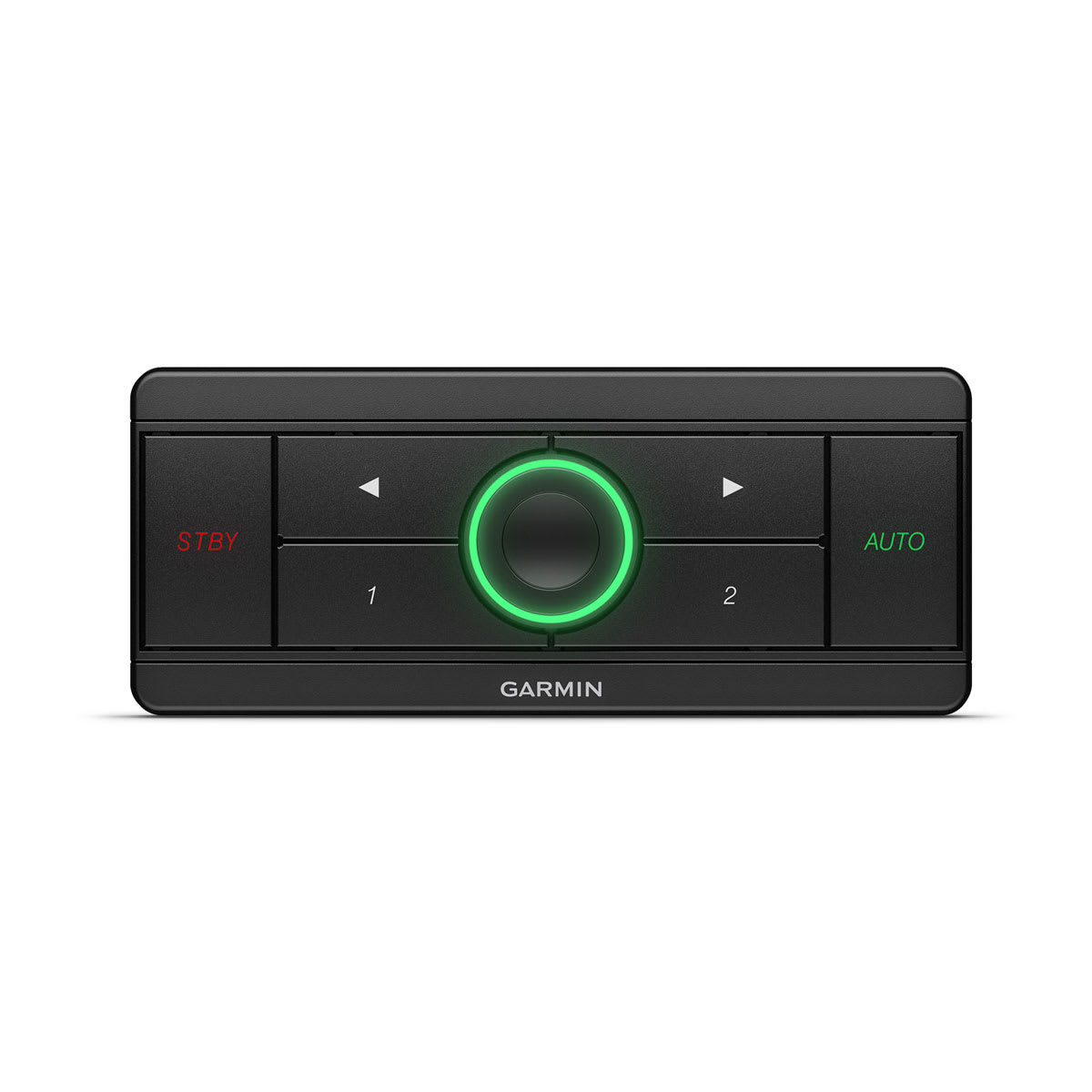

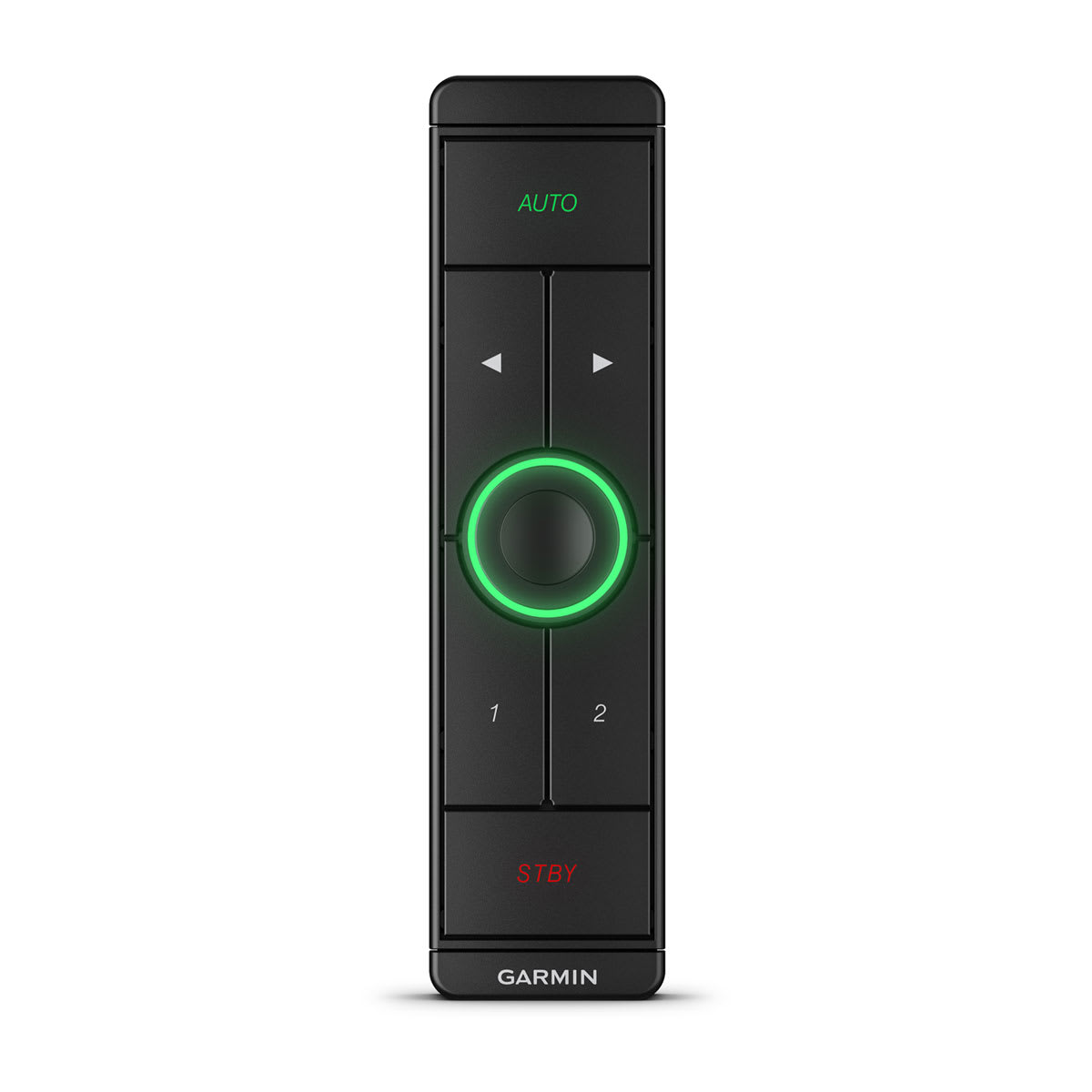

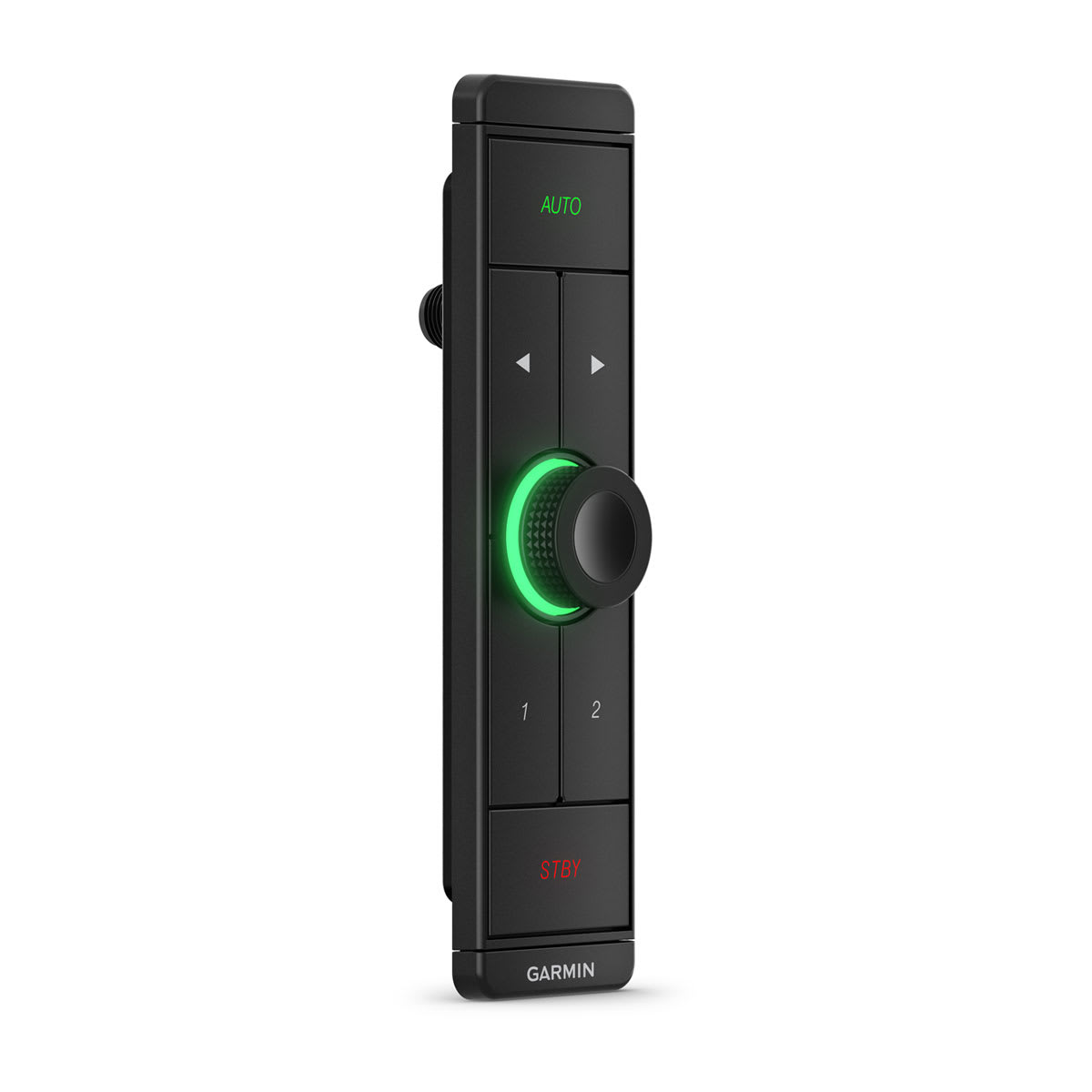

A low-profile design matches the height of your GHC 50 instrument and GPSMAP® chartplotter. The APK 10 keypad accessory comes in horizontal and vertical mounting options to suit your new or existing helm.
Specs
General |
|
| Dimensions (WxHxD) | Horizontal Flush mount: 5.5” x 2.3” x 0.28” (139.7 x 57.4 x 7.0 mm) Surface mount: 5.5” x 2.3” x 0.65” (140.7 x 58.4 x 16.4 mm) Vertical |
| Weight | Horizontal: 4.09 oz (116 g) Vertical: 3.5 oz (100 g) |
| Temperature range | From 5° to 158°F (from -15° to 70°C) |
| Material | Fully-gasketed, high-impact plastic |
| Water rating | IPX7 |
| Compass-safe distance | 4.5” (114 mm) |
| Powered input | Powered supplied from the NMEA 2000® network |
Engineering enhancements are ongoing and may not be reflected in the pictures, videos and specifications.
